Stabilized Trimeric Spike Protein SARS-CoV-2 (D614G mutant)
Made in CHO cells
Since the beginning of the COVID-19 pandemic in Wuhan, variants of the SARS-CoV-2 virus carrying a mutation in the spike protein at position 614 have largely replaced the original isolate [8]. See 3D model comparison.
Protein modelling has shown that this D614G mutation has a significant influence on the conformation of the trimeric spike. These structural changes in the G614 variant seem to enhance infectivity of virions through improved binding to the ACE2 receptor [4, 10, 15].
In addition, there are reports that antibodies generated against the Wuhan variant of SARS-CoV-2 may not fully protect against D614G [2, 6]. Interestingly, all current vaccines and diagnostic tests have been developed on the basis of the Wuhan isolate.
It is unclear, but not unthinkable that current vaccine candidates will be less effective against viruses carrying the D614G mutation. In addition, current antibody tests may display decreased sensitivity to antibodies against the 614G variant.
We offer the trimeric spike protein with the D to G mutation as well as the 614D ‘Wuhan’ trimeric protein. This makes these proteins ideal for use in comparative studies.
Since the beginning of the COVID-19 pandemic in Wuhan, variants of the SARS-CoV-2 virus carrying a mutation in the spike protein at position 614 have largely replaced the original isolate [8]. See 3D model comparison.
Protein modelling has shown that this D614G mutation has a significant influence on the conformation of the trimeric spike. These structural changes in the G614 variant seem to enhance infectivity of virions through improved binding to the ACE2 receptor [4, 10, 15].
In addition, there are reports that antibodies generated against the Wuhan variant of SARS-CoV-2 may not fully protect against D614G [2, 6]. Interestingly, all current vaccines and diagnostic tests have been developed on the basis of the Wuhan isolate.
It is unclear, but not unthinkable that current vaccine candidates will be less effective against viruses carrying the D614G mutation. In addition, current antibody tests may display decreased sensitivity to antibodies against the 614G variant.
We offer the trimeric spike protein with the D to G mutation as well as the 614D ‘Wuhan’ trimeric protein. This makes these proteins ideal for use in comparative studies.

Product datasheet
This product is intended for research use only.
Stabilized Trimeric Spike Protein SARS-CoV-2 (D614G mutant) | |
---|---|
Modifications | C-terminal Transmembrane region replaced with a trimerization domain and a polyhistidine tag. Two stabilizing proline mutations. Scrambled S1/S2 furin cleavage site. D614G amino acid change. |
Isolate (Seq ID) | Wuhan-Hu-1 (GenBank: MN908947) with D614G mutation. |
Expression system | CHOExpressTMcells |
Purity | > 95 % as determined by SDS-PAGE. |
Molecular weight | The recombinant SARS-CoV-2 trimeric spike protein consists of 3576 amino acids and predicts a molecular mass of ˜ 400 kDa. |
Endotoxin | < 1.0 EU per µg protein as determined by the LAL method. |
Format | Liquid |
Reference | Wrapp D. et al. Cryo-EM Structure of the 2019-nCoV Spike in the Prefusion Conformation. Science 367, 1260–1263 (2020) |

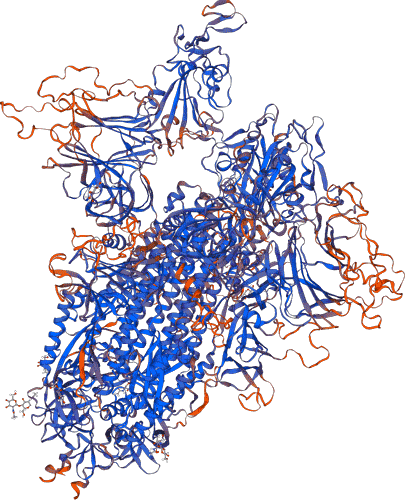

3-D model of the recombinant trimeric SARS-CoV-2 spike protein and D614G mutant using Swiss-Model – University of Basel online tools
